| Yes
we give best price DRO! |
Yes we
have all in stock now |
| Yes we give
FREE SHIP so you no pay more! |
Yes
ship from USA everyday M-F no delay |
| Yes
Brand New in factory box - no recondition like other guys |
Yes
our displays specific to mill or lathe |
| Yes we have 5 micron or 1 micron scales your choice! |
Yes so
easy to instal include handy install guidelet |
| Yes
everything only new so you can relax now |
Yes
double lip seals keeps scale last long time |
Here our 5µ (.0002") Standard Scale
Sizes:
|
Std 5µ |
Price |
Max Travel |
Length |
|
DC10-100 |
$88 |
|
4.92" |
9.25" |
|
DC10-200 |
$89 |
|
8.86" |
13.19" |
|
DC10-300 |
$90 |
|
12.80" |
17.13" |
|
DC10-400 |
$95 |
|
16.73 |
21.06" |
|
DC10-500 |
$96 |
|
20.67" |
25.00" |
|
DC10-600 |
$104 |
|
24.61" |
28.94" |
|
DC10-700 |
$105 |
|
28.54" |
32.87" |
|
DC10-800 |
$106 |
|
32.48" |
36.81" |
|
DC10-900 |
$108 |
|
36.42" |
40.75" |
|
DC10-1000 |
$110 |
|
40.35" |
44.69" |
|
DC10-1100 |
$120 |
|
44.29" |
48.62" |
|
DC10-1200 |
$200 |
|
48.23" |
52.56" |
Here our 5µ (.0002") Slim
Scale
Sizes:
|
Slim 5µ |
Price |
Max Travel |
Length |
|
DC10F-100 |
$116 |
|
4.01" |
8.61" |
|
DC10F-200 |
$117 |
|
7.94" |
12.54" |
|
DC10F-300 |
$119 |
|
11.88" |
16.48" |
|
DC10F-400 |
$125 |
|
15.81 |
20.42" |
|
DC10F-500 |
$126 |
|
19.76" |
24.36" |
|
DC10F-600 |
$127 |
|
23.69" |
28.29" |
Here our
1µ (.00005") Slim Scale
Sizes:
|
Slim 1µ |
Price |
Max Travel |
Length |
|
DC11F-100 |
$132 |
|
4.01" |
8.61" |
|
DC11F-200 |
$133 |
|
7.94" |
12.54" |
|
DC11F-300 |
$134 |
|
11.88" |
16.48" |
|
DC11F-400 |
$135 |
|
15.81 |
20.42" |
|
DC11F-500 |
$139 |
|
19.76" |
24.36" |
|
DC11F-600 |
$140 |
|
23.69" |
28.29" |

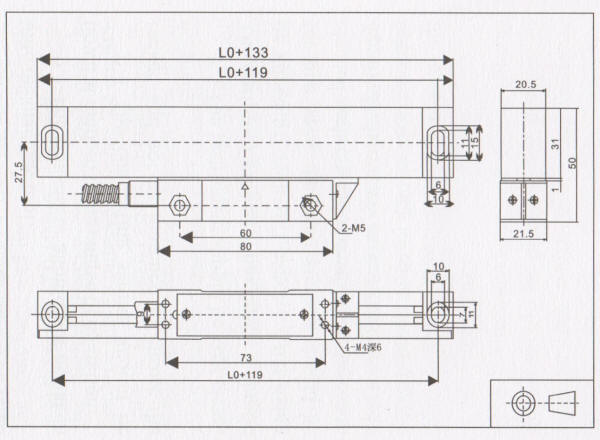

Profile of Standard
Scales:

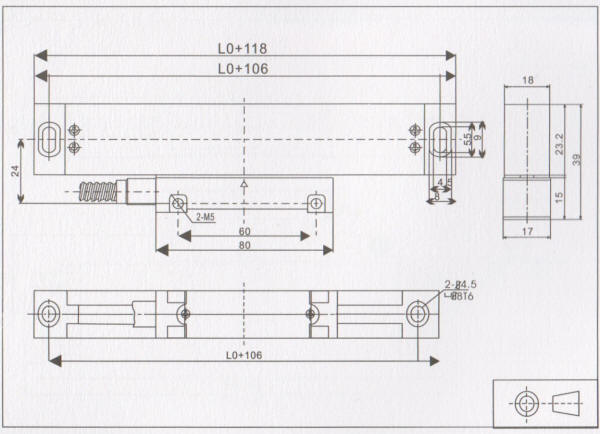

Profile of Slim Scales:
Here our
Scale
Pictures:

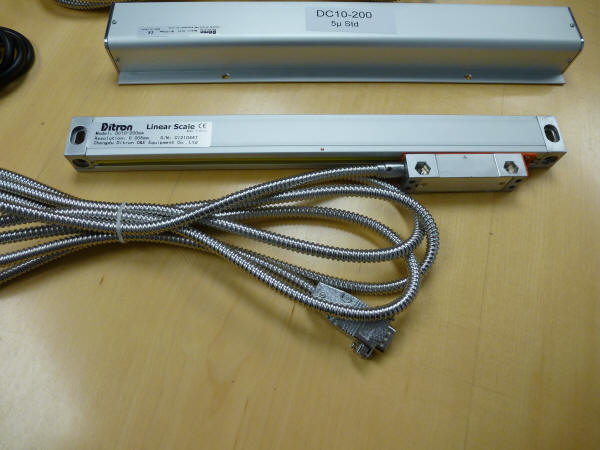

Here our Standard Scale
Pictures:

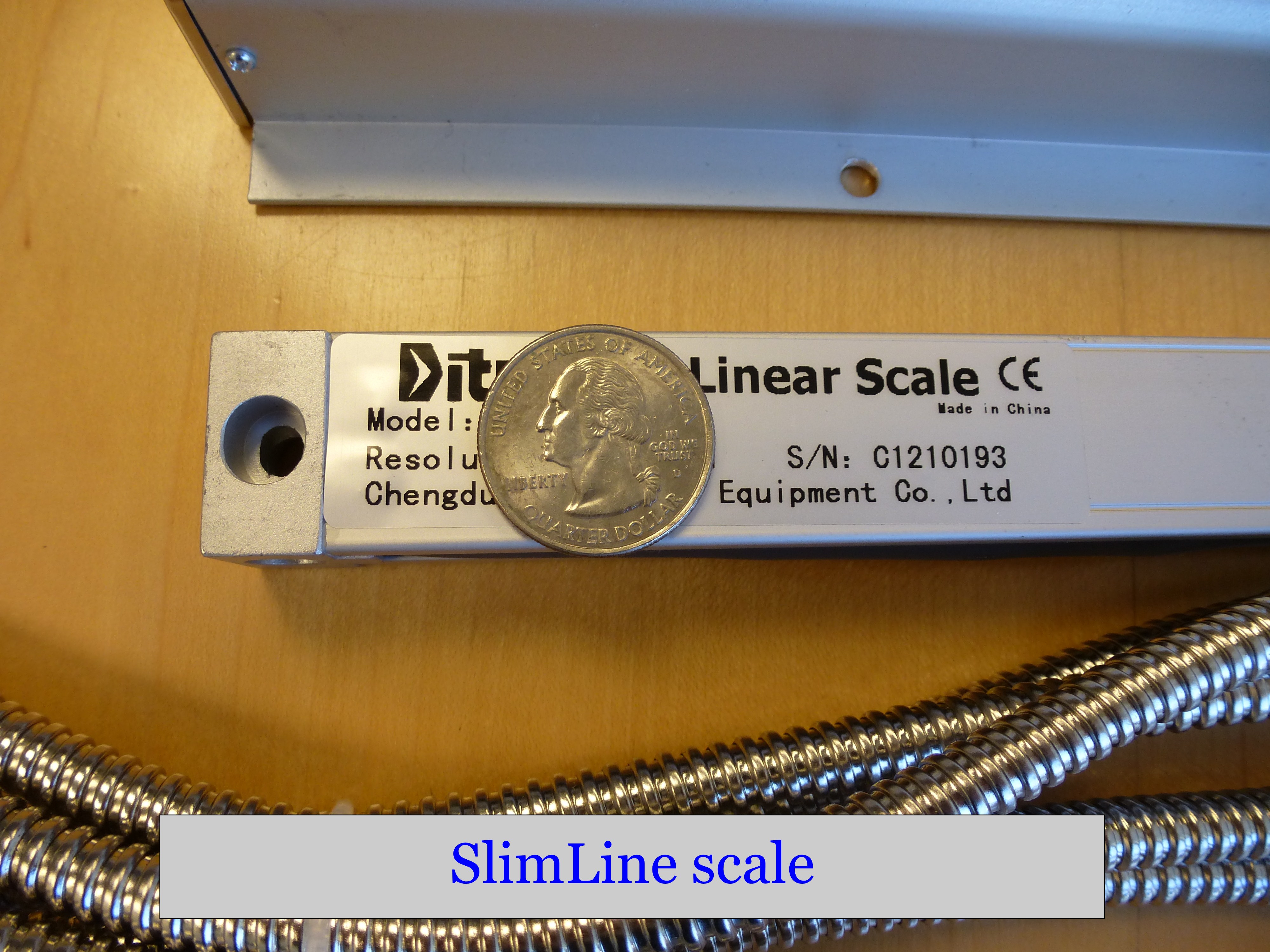

Here our
Slim Scale
Pictures:
Sorry 2 Axis Mill
Displays on
other page CLICK HERE
Sorry 2 Axis Lathe
Displays on
other page CLICK HERE
Sorry 3 Axis Mill
Displays on
other page CLICK HERE
Technical Parameters:
|
Voltage range: |
AC 80V-260V/50HZ-60HZ |
|
Power dissipation:
|
20VA |
|
Axis: |
2 |
|
Display:
|
7 bit display with sign |
|
Times frequency: |
4X |
|
Readout box input signal:
|
TTL, ELA-422-A |
|
Input
frequency:
|
>100KHZ |
|
Resolution:
|
10µm, 5µm, 1µm,
0.5µm, 0.1µm |
|
Operating keyboard:
|
Light touch
buttons |
|
Scale
grating
space: |
0.04mm,
0.02mm, 0.01mm |
|
Grating scale: |
20µm |
|
Scale grating system: |
Infrared optical measuring
system |
|
Infrared wavelength: |
880nm |
|
Readhead transport: |
Five
precision bearing |
|
Power supply:
|
+5V |
|
